FR Type Piston And Rod Guide Ring,Hydraulic Piston Seals Wear Ring,Phenolic Resin C/S 2.5mm ,Width 9.5mm
1. Product Description:
FR Guide ring is an open type, which is easy to install. Good abrasion resistance, suitable for the Hydraulic cylinder piston and rod.
2.APPLICATION:
| Raw Material | Phenolic Resin |
| Pressure | ＜60Mpa |
| Temperature Range | -50 to +120 ° C |
| Speed | ≤0.5m/s |
| Type | Inclined Incision |
| Color | Brown Or Black |
| Use Part | Piston&Rod |

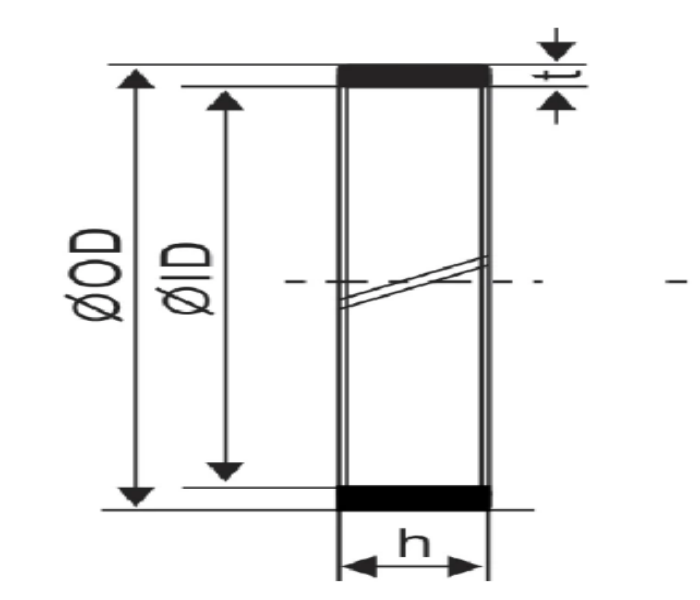

3.SPECIFICATION:
| t | H |
| 2.5MM | 9.5MM |
| 2.5MM | 9.7MM |
| 2.5MM | 14.8MM |
| 2.5MM | 19.7MM |
| 2.5MM | 24.7MM |
| 2.5MM | 30MM |
| 2.5MM | 40MM |
4.Delivery & Payment Term:
Date Of Delivery:
1-2 work days if in stock.
7-10 work days, if goods out of stock Urgent shipment air freight.
Customized product delivery period negotiation..
Payment Term:
30% T/T in advance and 70% balance paid before shipment.
Western Union, Cash, T/T ,Bank, PayPaI
others for discussion
|
|
