EXCAVATOR BUCKET SHAFT OIL SEAL,AF TYPE POLYURETHANE SINGLE LIP,AF AM DKB DKBI GA WIPER SEAL
1. Product Description:

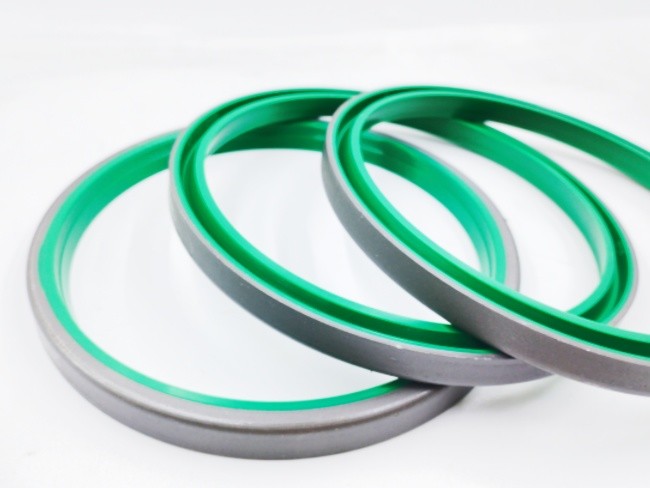

AF-type dustproof ring is composed of PU and Iron. IS used to
prevent dust, dirt, sand particles, and metal debris into the
hydraulic cylinder.
2. Product Application:
| Material | P5008+IRON |
Operating temperature | -35 °C to +80 °C |
Sliding speed | ≤2M/S |
| Media | Hydraulic oil |
3. Commonly Used Material:
| Material: | Temperature: |
| NBR | -40 to 100 ℃ |
| FKM | -20 to 200 ℃ |
| FFKM | -20 to 320 ℃ |
| HNBR | -40 to 150 ℃ |
| AFLAS | -30 to 175 ℃ |
| VMQ/SILICON | -70 to 220 ℃ |
| FVMQ | -60 to 175 ℃ |
| EPDM | -50 to 150 ℃ |
| CR | -40 to 120 ℃ |
| SBR | -40 to 110 ℃ |
| PU | -40 to 90 ℃ |
| PTFE | -100 to 280 ℃ |
| IIR | -20 to 120 ℃ |
| ACR | -25 to 150 ℃ |
4. Compounds:
5. Adantage:
The AF dust ring is used to prevent dust, dirt, sand particles, and metal debris into the hydraulic cylinder. Reduce the risk of scratching due to external pollutants embedded in sliding elements. Through the special design of dust -proof lips, it has an excellent dustproof effect. After verification, polyurethane material P5008 has the characteristics of strong abrasion resistance, small permanent deformation, and impact of external mechanical impact. Through the aggregation of the outer diameter of the metal ring, the dustproof ring can be reliable in the axial open groove. Due to the flatness of the dust -proof exhibition and the end of the cylinder head, the lip mouth is highly protected on the damage caused by external reasons.
From the perspective of the project, the AF dust ring is a suitable tank head sealing device. The sealing system composed of the B3 and BU live club seals has been tested and confirmed in the worst working environment.
6. INSTALLATION:

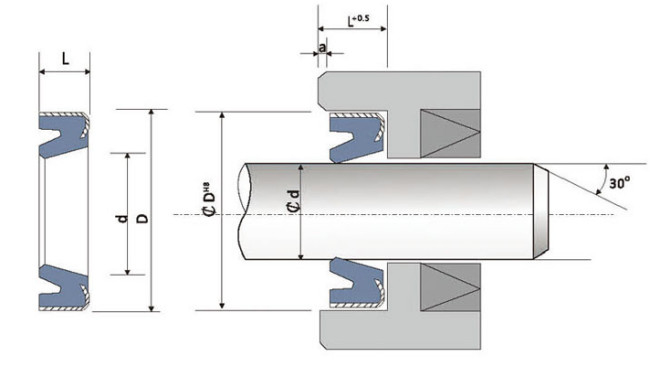

The outer diameter D of the AF type Ultrathan dust ring D is slightly larger, which can ensure that a reliable tightening is formed after installation in the groove D. Avoid contact with the dust ring lip mouth and the piston pore eye or other connected elements.
7. FAQ:
1. How to choose materials?
The selection of materials needs to be used according to the
environment, including the medium, temperature, pressure, etc.
2. How to deliver the goods?
for small order, we can deliver by express, such as DHL, FEDEX,
UPS,TNT.etc.
for large order , we can deliver by air or by ship .
3. Are you a manufacturer ?
Yes.We are specializing in the production of various hydraulic and
pneumatic sealing products. Its quality system certification has
passed ISO 9001:2015, and the materials used comply with REACH and
RoHS regulations. Accept customization and OEM production.
4. Do you provide samples ? is it free?
Yes, we will offer the sample for free charge but you need to pay
the cost of freight.
5. How is the quality?
All manufacturing processes confirm to the ISO-9001:2015 system,
100% inspection before shipment.
|
|
