1.Product Description:
MYA sealing pieces are usually used in pneumatic systems, such as
can be applied to cylinders to play a sealing gas and prevent
leakage to ensure the normal work of the cylinder. For example, it
will be used in the seal of some small cylinder, valve and other
equipment.
2.Product Characteristic:
● Small cross -section design: It has a small cross -sectional size, which enables it to adapt to the installation environment with limited space, especially suitable for small equipment or higher space requirements. For example, in some precision instruments and small pneumatic tools, the small section characteristics of MyA sealing parts can meet the needs of its compact design.
● Good sealing performance: It can effectively prevent gas or liquid leaks, maintain stability of the system, and ensure the normal operation of the equipment. Whether it is static sealing or dynamic sealing conditions, it can play a reliable sealing effect. For example, between the piston of the cylinder and the cylinder cylinder, the MYA sealing part can prevent the gas from leaking from the gap between the piston and the cylinder.
● Abrasion resistance: During the work, the sealing parts will produce friction with other components. The MyA sealing parts have better abrasion resistance and can withstand long friction without being easily damaged, thereby ensuring the longer service life. This is particularly important for frequent motor atmosphere, which can reduce the replacement frequency of sealing and reduce maintenance costs.
● Temperature resistance: It can maintain good performance within a
certain temperature range and meet the temperature requirements of
different working environments. Whether in high temperature and low
temperature environment, the stability of its sealing function and
physical properties can be maintained.
3.Product Application:
Operating pressure | ≤ 16 bar |
Operating temperature | -40 °C to +100 °C |
Sliding speed | ≤0.5M/S |
| Media | Compressed air, both lubricated and oil free (after greasing for fitting) |
4.Commonly Used Material:
| Material: | Temperature: |
| NBR | -40 to 100 ℃ |
| FKM | -20 to 200 ℃ |
| FFKM | -20 to 320 ℃ |
| HNBR | -40 to 150 ℃ |
| AFLAS | -30 to 175 ℃ |
| VMQ/SILICON | -70 to 220 ℃ |
| FVMQ | -60 to 175 ℃ |
| EPDM | -50 to 150 ℃ |
| CR | -40 to 120 ℃ |
| SBR | -40 to 110 ℃ |
| PU | -40 to 90 ℃ |
| PTFE | -100 to 280 ℃ |
| IIR | -20 to 120 ℃ |
| ACR | -25 to 150 ℃ |

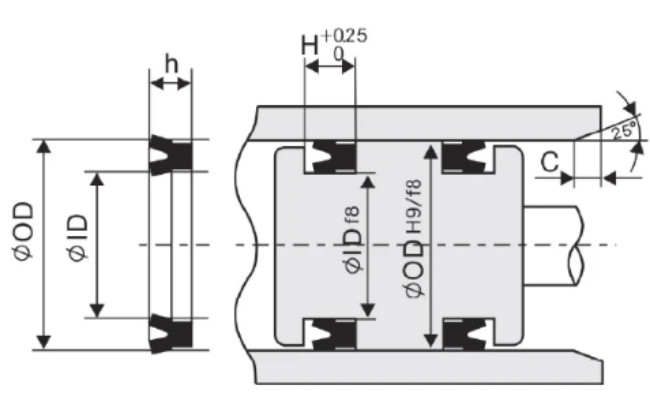

5.Product specification:
| ITEM | ID | OD | h | H | C | L |
| MYA-003 | 3 | 6 | 2.1 | 2.5 | 2.0 | 1.5 |
| MYA-004 | 4 | 7 | 2.1 | 2.5 | 2.0 | 1.5 |
| MYA-005 | 5 | 8 | 2.1 | 2.5 | 2.0 | 1.5 |
| MYA-006 | 6 | 9 | 2.1 | 2.5 | 2.0 | 1.5 |
| MYA-007 | 7 | 10 | 2.1 | 2.5 | 2.0 | 1.5 |
| MYA-008 | 8 | 11 | 2.1 | 2.5 | 2.0 | 1.5 |
| MYA-009 | 9 | 12 | 2.1 | 2.5 | 2.0 | 1.5 |
| MYA-010 | 10 | 13 | 2.1 | 2.5 | 2.0 | 1.5 |
| MYA-10A | 10 | 14 | 2.8 | 3.2 | 2.5 | 2.0 |
| MYA-011 | 11 | 15 | 2.8 | 3.2 | 2.5 | 2.0 |
| MYA-012 | 12 | 16 | 2.8 | 3.2 | 2.5 | 2.0 |
| MYA-13.6 | 13.6 | 18 | 2.8 | 3.2 | 2.5 | 2.0 |
| MYA-014 | 14 | 18 | 2.8 | 3.2 | 2.5 | 2.0 |
| MYA-015 | 15 | 19 | 2.8 | 3.2 | 2.5 | 2.0 |
| MYA-016 | 16 | 20 | 2.8 | 3.2 | 2.5 | 2.0 |
| MYA-018 | 18 | 22 | 2.8 | 3.2 | 2.5 | 2.0 |
| MYA-020 | 20 | 24 | 2.8 | 3.2 | 2.5 | 2.0 |
| MYA-021 | 21 | 25 | 2.8 | 3.2 | 2.5 | 2.0 |
| MYA-022 | 22 | 26 | 2.8 | 3.2 | 2.5 | 2.0 |
| MYA-024 | 24 | 30 | 4.2 | 4.7 | 3.0 | 3.0 |
| MYA-034 | 34 | 40 | 4.2 | 4.7 | 3.0 | 3.0 |
