Exquisite Craftsmanship, Excellent Quality, Focus On Sealing Fields.
2 Years
| Ask Lasest Price | |
| Brand Name : | DZK |
| Model Number : | EU-16*26*10.7 |
| Certification : | ROHS |
| Price : | USD 0.25/PCS |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 1000000PCS/MONTH |
| Delivery Time : | 7-10 days |
1.Product Description:

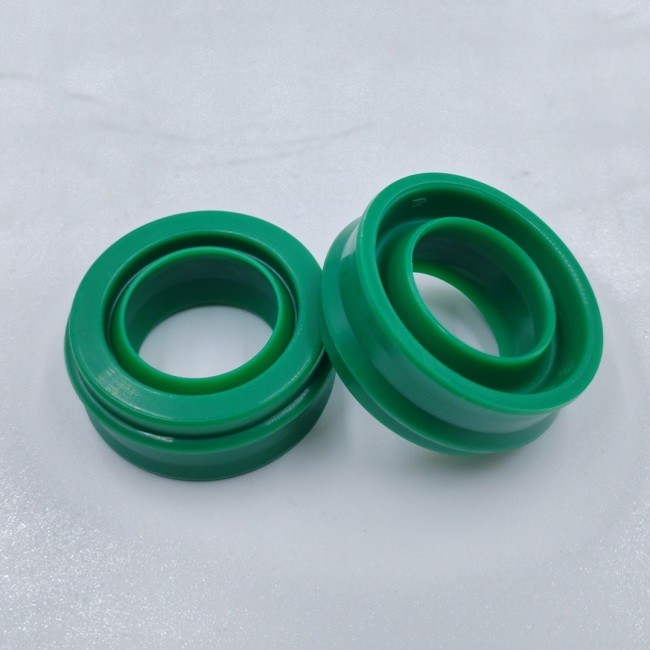

The self-retaining EU rod seal/wiper ring for pneumatic cylinder
piston rods performs
three functions simultaneously:
2.Product Application:
Operating pressure | ≤ 16 bar |
Operating temperature | -35 °C to +80 °C |
Sliding speed | ≤1M/S |
| Media | Compressed air, both lubricated and oil free (after greasing for fitting) |
3.Commonly Used Material:
| Material: | Temperature: |
| NBR | -40 to 100 ℃ |
| FKM | -20 to 200 ℃ |
| FFKM | -20 to 320 ℃ |
| HNBR | -40 to 150 ℃ |
| AFLAS | -30 to 175 ℃ |
| VMQ/SILICON | -70 to 220 ℃ |
| FVMQ | -60 to 175 ℃ |
| EPDM | -50 to 150 ℃ |
| CR | -40 to 120 ℃ |
| SBR | -40 to 110 ℃ |
| PU | -40 to 90 ℃ |
| PTFE | -100 to 280 ℃ |
| IIR | -20 to 120 ℃ |
| ACR | -25 to 150 ℃ |
4.Adantage:
• Due to application-optimized geometryand compounds suitable for
use in
oiled as well as in oil-free air (after initial lubrication on
assembly).
• Bi-functional element: seal and wiper.
• Robust seal profile for harshest operating conditions.
• Extreme wear resistance.
• No risk of corrosion since the combined retainer and wiper part
eliminates the
need for additional wire circlips.
• Long service life due to coordinated geometries of the functional
lips and compound selection.
• Smooth running due to optimum lubricant-retaining sealing lip
geometry.
• Excellent media resistance in case of suitable compound
selection.
5.FAQ:
1. How to choose materials?
The selection of materials needs to be used according to the
environment, including the medium, temperature, pressure, etc.
2. How to deliver the goods?
for small order, we can deliver by express, such as DHL, FEDEX,
UPS,TNT.etc.
for large order , we can deliver by air or by ship .
3. Are you a manufacturer ?
Yes.We are specializing in the production of various hydraulic and
pneumatic sealing products. Its quality system certification has
passed ISO 9001:2015, and the materials used comply with REACH and
RoHS regulations. Accept customization and OEM production.
4. Do you provide samples ? is it free?
Yes, we will offer the sample for free charge but you need to pay
the cost of freight.
5. How is the quality?
All manufacturing processes confirm to the ISO-9001:2015 system,
100% inspection before shipment.
|
|
