1.Product Description:
C1 rod seal meets the requirements of the manufacturers of
hydraulic and
pneumatic equipment for seals with the smallest possible housings.
Although crosssections and heights are very small, the sealing
performance is excellent.
2.Product Application:
| Material | NBR/FKM |
Operating temperature | -35 °C to +200 °C |
Sliding speed | ≤1M/S |
| Media | Compressed air, both lubricated and oil free (after greasing for fitting) |
3.Commonly Used Material:
| Material: | Temperature: |
| NBR | -40 to 100 ℃ |
| FKM | -20 to 200 ℃ |
| FFKM | -20 to 320 ℃ |
| HNBR | -40 to 150 ℃ |
| AFLAS | -30 to 175 ℃ |
| VMQ/SILICON | -70 to 220 ℃ |
| FVMQ | -60 to 175 ℃ |
| EPDM | -50 to 150 ℃ |
| CR | -40 to 120 ℃ |
| SBR | -40 to 110 ℃ |
| PU | -40 to 90 ℃ |
| PTFE | -100 to 280 ℃ |
| IIR | -20 to 120 ℃ |
| ACR | -25 to 150 ℃ |
4.Compounds:
5.Adantage:
• Good wear resistance.
• Easy installation.
• High temperature resistance in case of suitable compound
selection.
• Excellent media resistance in case of suitable compound
selection.
• Suitable compounds available for special requirements of the
chemical
process industry.
• Suitable compounds available for special requirements of the food
processing
industry.
• Installation in closed and undercut housings.

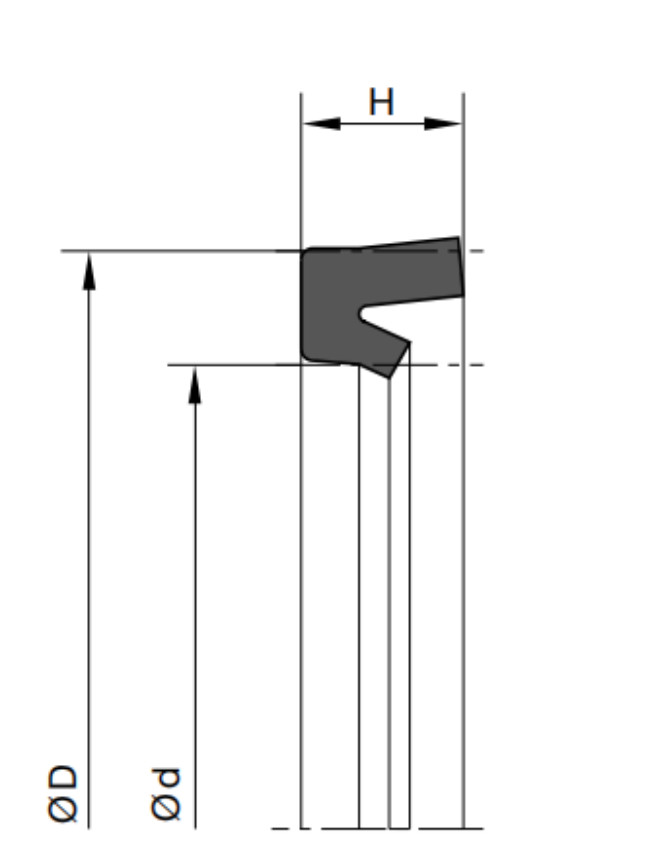

6.SPECIFICATION:
7.INSTALLATION:
The gap dimensions „e“ guarantee an optimum service life of the guiding tapes. For the seals, however, the gaps as mentioned on the respective catalogue pages are to be considered when it is essential to observe full working conditions (Range of Application).
8.FAQ:
1. How to choose materials?
The selection of materials needs to be used according to the
environment, including the medium, temperature, pressure, etc.
2. How to deliver the goods?
for small order, we can deliver by express, such as DHL, FEDEX,
UPS,TNT.etc.
for large order , we can deliver by air or by ship .
3. Are you a manufacturer ?
Yes.We are specializing in the production of various hydraulic and
pneumatic sealing products. Its quality system certification has
passed ISO 9001:2015, and the materials used comply with REACH and
RoHS regulations. Accept customization and OEM production.
4. Do you provide samples ? is it free?
Yes, we will offer the sample for free charge but you need to pay
the cost of freight.
5. How is the quality?
All manufacturing processes confirm to the ISO-9001:2015 system,
100% inspection before shipment.
|
|
