OV TYPE POLYURETHANE FLANGE SEALING PARTS,OV 3605 P5008,HIGH PRESSURE OIL PIPE JOINT SEALING PART,SAE 1 1/4 INCH SEAL
1. Product Description:
2. Product Characteristic:
● It has a very low permanent compression deformation rate, ensure there is a stable size when the temperature changes are large.
● High -resistant extrusion performance can prevent it from being squeezed in under high pressure ("breathing") gap.
● Highly abrasion resistance can reduce unnecessary sealing surface roughness.
● The special design of the OV section can avoid the use of O-rings common requirements for being inhaled into the oil port.
● Long service life: good abrasion loss performance, coupled with good material characteristics to make it have a longer service life.
Operating pressure | ≤ 60Mpa |
Operating temperature | -35 °C to +100 °C |
| Material | PU93 P5008 |
| Media | Hydraulic oil |
4. Commonly Used Material:
| Material: | Temperature: |
| NBR | -40 to 100 ℃ |
| FKM | -20 to 200 ℃ |
| FFKM | -20 to 320 ℃ |
| HNBR | -40 to 150 ℃ |
| AFLAS | -30 to 175 ℃ |
| VMQ/SILICON | -70 to 220 ℃ |
| FVMQ | -60 to 175 ℃ |
| EPDM | -50 to 150 ℃ |
| CR | -40 to 120 ℃ |
| SBR | -40 to 110 ℃ |
| PU | -40 to 90 ℃ |
| PTFE | -100 to 280 ℃ |
| IIR | -20 to 120 ℃ |
| ACR | -25 to 150 ℃ |
5. Product specification:

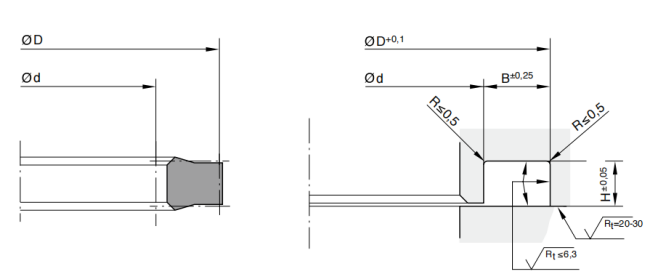

6. Installation:
The back of the sealing parts must be atmospheric. Roughly sealed
surface roughness Peak -Valley Value (RT) must not be greater than
6.3 microns, the bottom of the sinking hole roughness Peak-valley
Value (RT) is about 20 to 30 microns.(DIN 3142 B5-P4). If there are
a few holes around,
The exhaust channel must be arranged.
|
|
