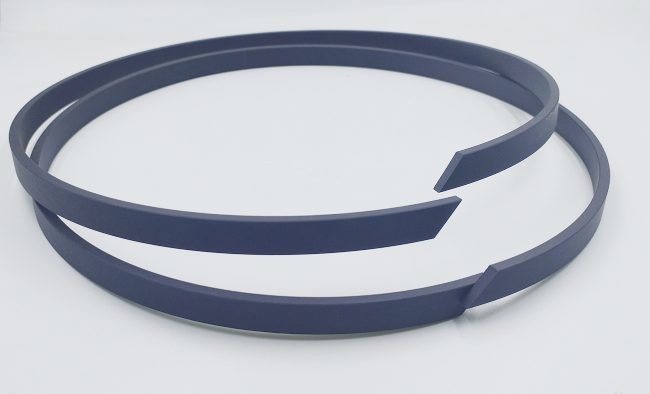

PTFE+25% CARBON FIBER,F2 PISTON WEAR RING,COMPRESSOR PISTON WEAR RING,Acid -alkali corrosion sealing
1. Product Description:
The PTFE guidance tape profile F2 is specially designed for use in
pistons.just as pneumatic/hydraulic cylinder piston.
2. Product Application:
| Material | PTFE+25%FB |
Operating temperature | -100 °C to +200 °C |
Sliding speed | ≤10M/S |
| Media | Compressed air, both lubricated and oil free (after greasing for fitting) |
3. Commonly Used Material:
| Material: | Temperature: |
| NBR | -40 to 100 ℃ |
| FKM | -20 to 200 ℃ |
| FFKM | -20 to 320 ℃ |
| HNBR | -40 to 150 ℃ |
| AFLAS | -30 to 175 ℃ |
| VMQ/SILICON | -70 to 220 ℃ |
| FVMQ | -60 to 175 ℃ |
| EPDM | -50 to 150 ℃ |
| CR | -40 to 120 ℃ |
| SBR | -40 to 110 ℃ |
| PU | -40 to 90 ℃ |
| PTFE | -100 to 280 ℃ |
| IIR | -20 to 120 ℃ |
| ACR | -25 to 150 ℃ |
4. Compounds:
5. Adantage:
• Due to application-optimized geometry and compounds suitable for
use in
oiled as well as in oil-free air (after initial lubrication on
assembly).
• Vibration absorption effect.
• Very good emergency running properties in low-lube conditions.
• High load capacity (compressive strength), low wear and reduced
friction
due to special carbon additive in PTFE material.
• Also available as bulk material.
• Any desired nominal diameter available due to use of machining
technique.
• Suitable for cylinder repairs.
• Ideally suited for large-diameters.
• Bulk material.
• Installation in closed housings.
6. INSTALLATION:
The gap dimensions „e“ guarantee an optimum service life of the guiding tapes. For the seals, however, the gaps as mentioned on the respective catalogue pages are to be considered when it is essential to observe full working conditions (Range of Application).
7.FAQ:
1. How to choose materials?
The selection of materials needs to be used according to the
environment, including the medium, temperature, pressure, etc.
2. How to deliver the goods?
for small order, we can deliver by express, such as DHL, FEDEX,
UPS,TNT.etc.
for large order , we can deliver by air or by ship .
3. Are you a manufacturer ?
Yes.We are specializing in the production of various hydraulic and
pneumatic sealing products. Its quality system certification has
passed ISO 9001:2015, and the materials used comply with REACH and
RoHS regulations. Accept customization and OEM production.
4. Do you provide samples ? is it free?
Yes, we will offer the sample for free charge but you need to pay
the cost of freight.
5. How is the quality?
All manufacturing processes confirm to the ISO-9001:2015 system,
100% inspection before shipment.
|
|
